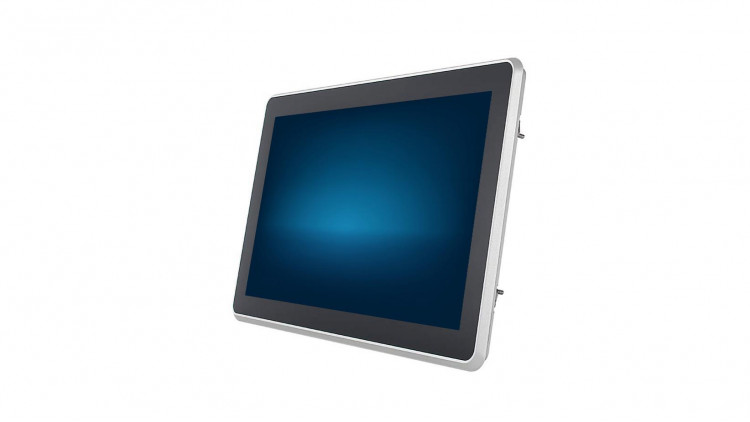

• Touch Industrial PC Front Panel 12.1 - Abbildung ähnlich
  • Abbildung ähnlich

Resolution: 1280 x 800 WXGA
Luminance: 400 cd/m²
Contrast Ratio: 1000 : 1
Viewing Angle: H 89°/89°, V 89°/89°
LED Lifetime: 50k h
Anti-Glare: Yes
CPU: Intel® Celeron® N3350 Dual Core 1.1 GHz 64-bit
TPM 2.0: Infineon SLB9670
RTC: Yes
Primary Mass Storage: SSD, m.2, 3D TLC, TYP 2242, 64 GB
USB 3.0 Host: 2 (Type A, bottom)
Ethernet 10/100/1000-BaseT: 2 (RJ45)
EIA-232/EIA-422/EIA-485: 1 (RJ50)
DisplayPort: 1 (DP 1.0)
Ambient Temperature: 0 to +50°C
Cooling: Passive (fanless)
IP Class: IP65 Front / IP20 Rear
Power: 12 - 24 VDC ± 20%
Power Button: No

Following CPUs are also possible:

Intel® Celeron™ 3965U 2.2 GHz

Intel® Core™ i3-7100U 2.4 GHz

Intel® Core™ i5-7300U 2.6 GHz

Intel® Core™ i7-7600U 2.8 GHz


Following Extensions are possible:


Ethernet 100 Mbit

Ethernet based Fieldbusses



Lateral USB 2.0 / Power Button


Following Upgrades are possible:

RAM upt to 32 GB

Mass storage up to 512 GB SSD



Bedienungsanleitung, Englisch
Bedienungsanleitung, Deutsch
Datenblatt, Deutsch
Datenblatt, Englisch
CPU Intel® Celeron™ N3350 1.1 GHz
Display 12,1
Housing Industrial Front Panel
IP Class Front IP65/ Back IP20
Performance PC
Resolution 1280 x 800 WXGA

Touch Industrial PC Front Panel 12.1

Senden Sie uns eine Anfrage

  • Artikelnr. PA10007322
